96480459

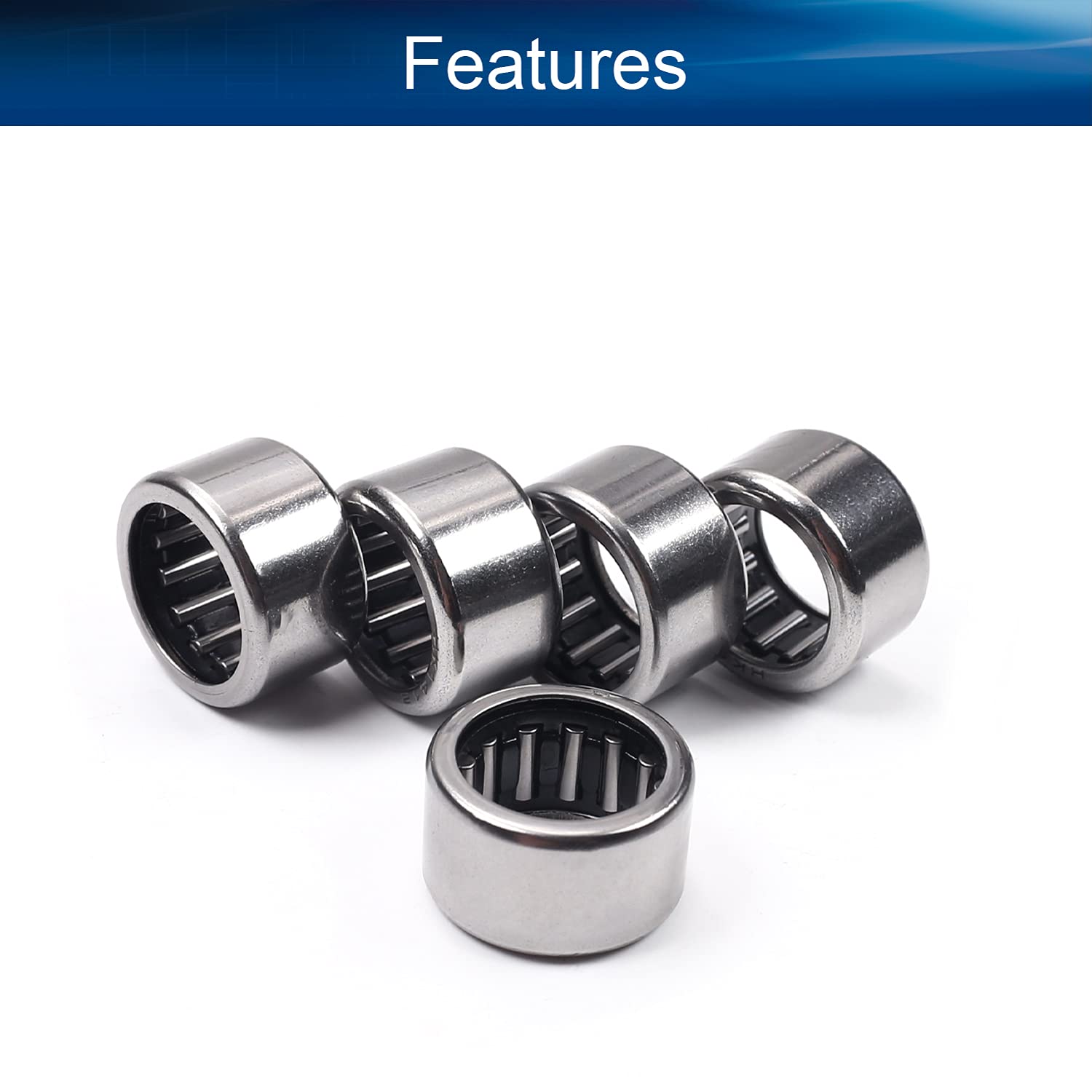

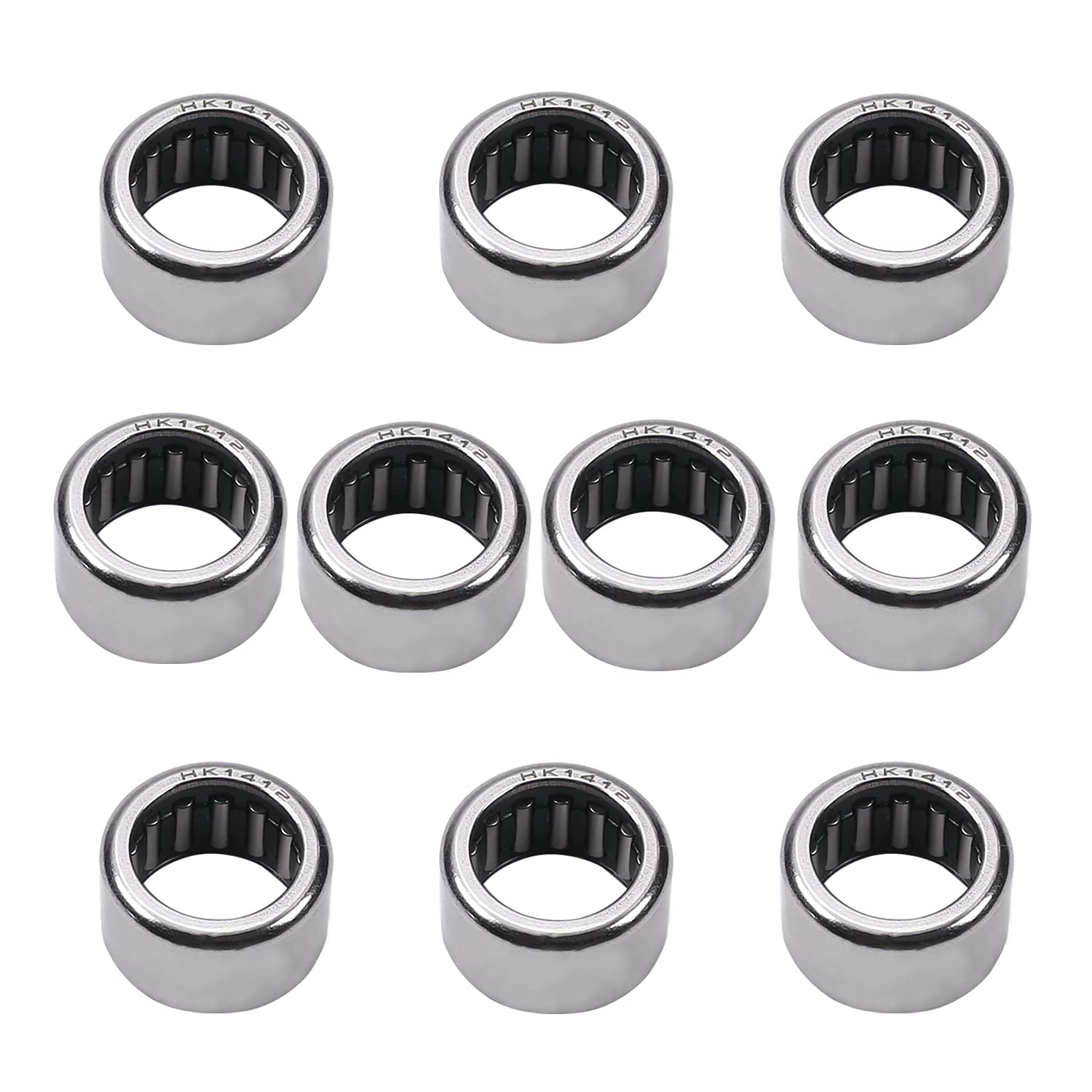

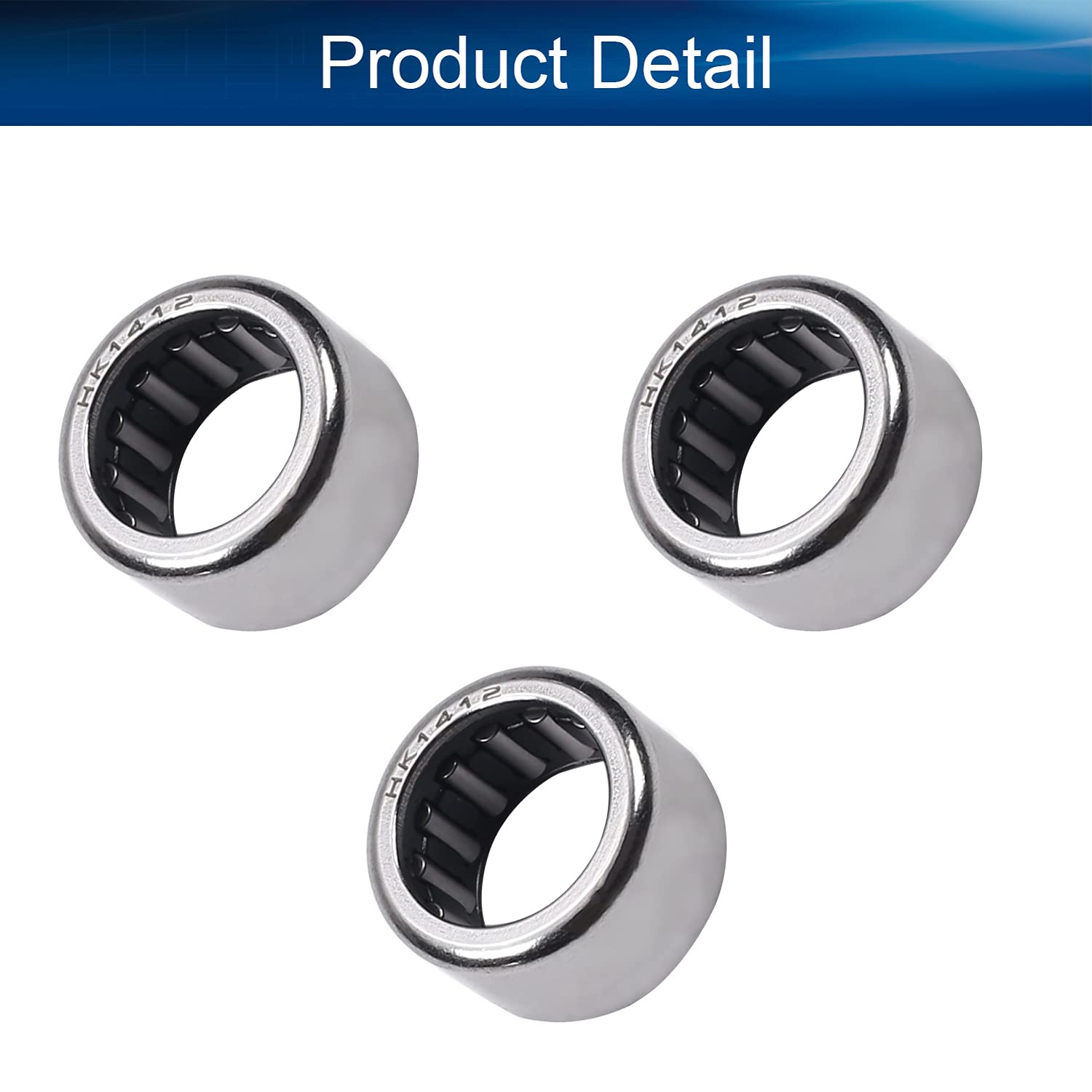

Yinpecly Needle Roller Bearings Specification: Model:HK1412 Material: GCr56 Inside Diameter:14mm/0.55 inch Outer Diameter: 20mm/0.79 inch Thickness: 12mm/0.47 inch Cage Material: ST13 Steel Dynamic Load Capacity (Cr): 6.8kN Static Load Capacity (Cor): 7.5kN Maximum Rotational Speed (Oil): 16000rpm Maximum Rotational Speed (Grease): 26667rpm Description: 1.Needle Roller Bearing is widely used, ranging from agricultural machinery to conveying equipment, robots, elevators, rolling mills, rudder shafts, aggregate crushers, etc. 2.It features a deep drawn, thin-walled outer ring. They are compact bearings with high load carrying capacity and stiffness. 3.GCr56 is made with heat treating so it provides high and uniform hardness, good wear resistance, and high contact fatigue performance, making Needle Roller Bearing has good heat tolerance, high load carrying capacity and stiffness. 4.These bearings to accommodate heavy axial loads and peak loads due to small diameter deviation of the rollers within one assembly. Package Content: 10pcs x Needle Roller Bearings
Dynamic Load Rating (Cr) 6.8kN; Static Load Rating (Cor) 7.5kN; Maximum Rotational Speed (Oil) 16000rpm; Maximum Rotational Speed (Grease) 26667rpm

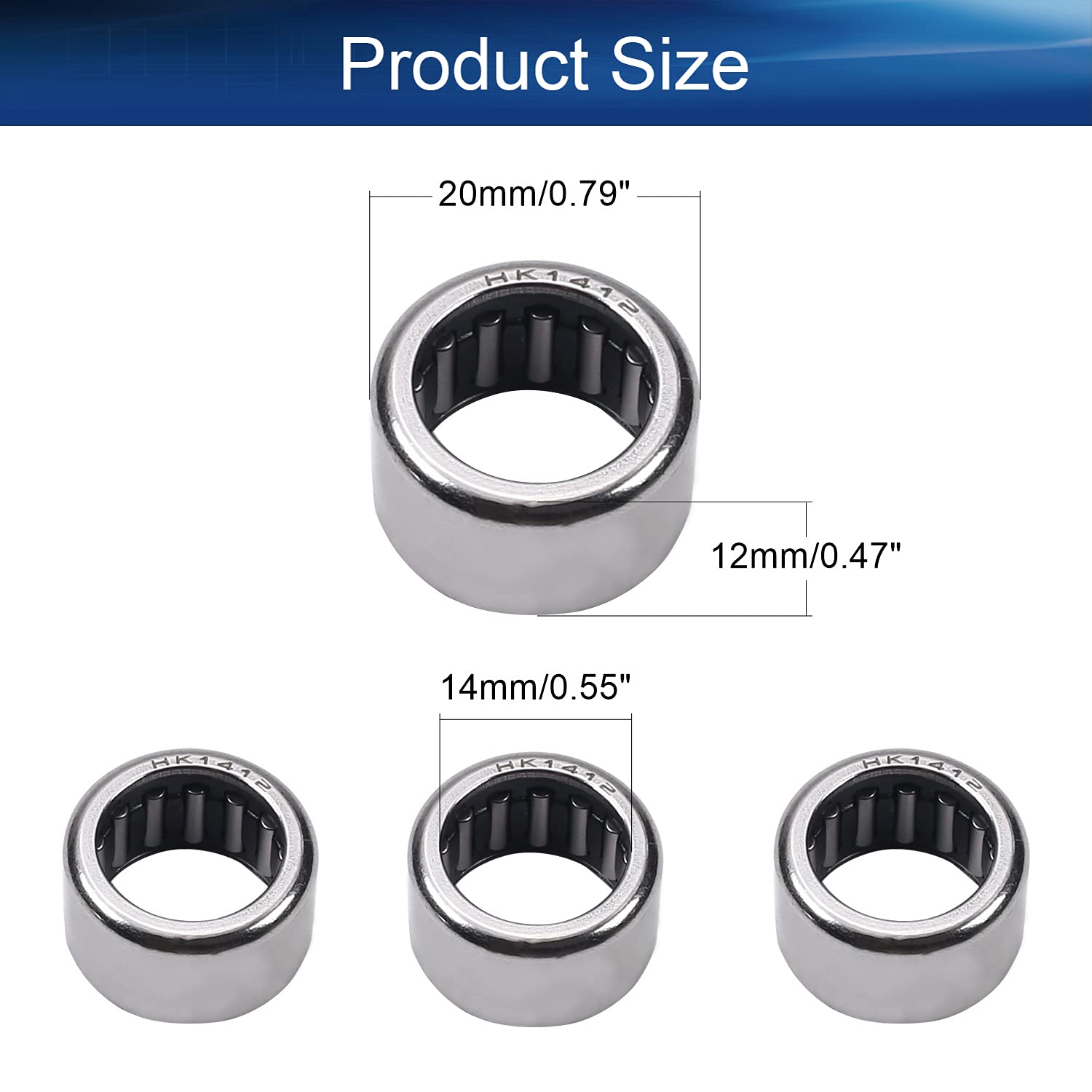

Dimensions Bore Dia. 14mm/0.55"; Outer Dia. 20mm/0.79"; Thickness 12mm/0.47"
This Needle Roller Bearing is made of high carbon chromium bearing steel (fully hardened) so it’s long-life, smooth and low noise, also has high durability and resistance to under heavy loads
Needle Roller Bearing is especially suitable for high dynamic loads or radial-limited installation, also for various applications such as agricultural and construction equipment, pumps and compressors, and two-cycle engines, among others; They are mounted with a tight interference fit in the housing
